Musical Mancala



Musical Mancala


Role: Sketch ideation, Electronic Prototyping, 3D modeling/renders, CNC Machining



Physical Drum Machine

short+petal.224 edit.jpg

Musical Mancala borrows the idea of a complex digital based interface of a musical sequencer from a computer screen and translates it into a simpler tactile physical interface for an automatic drum machine.  Users simulate percussive instruments using eight Mancala-like pockets around a wooden board.  As beads are dropped into each cup like a game of Mancala, music begins to play and an understanding of the musical interface begins to develop indicating eight notes in a looping measure of beats.




early Prototyping

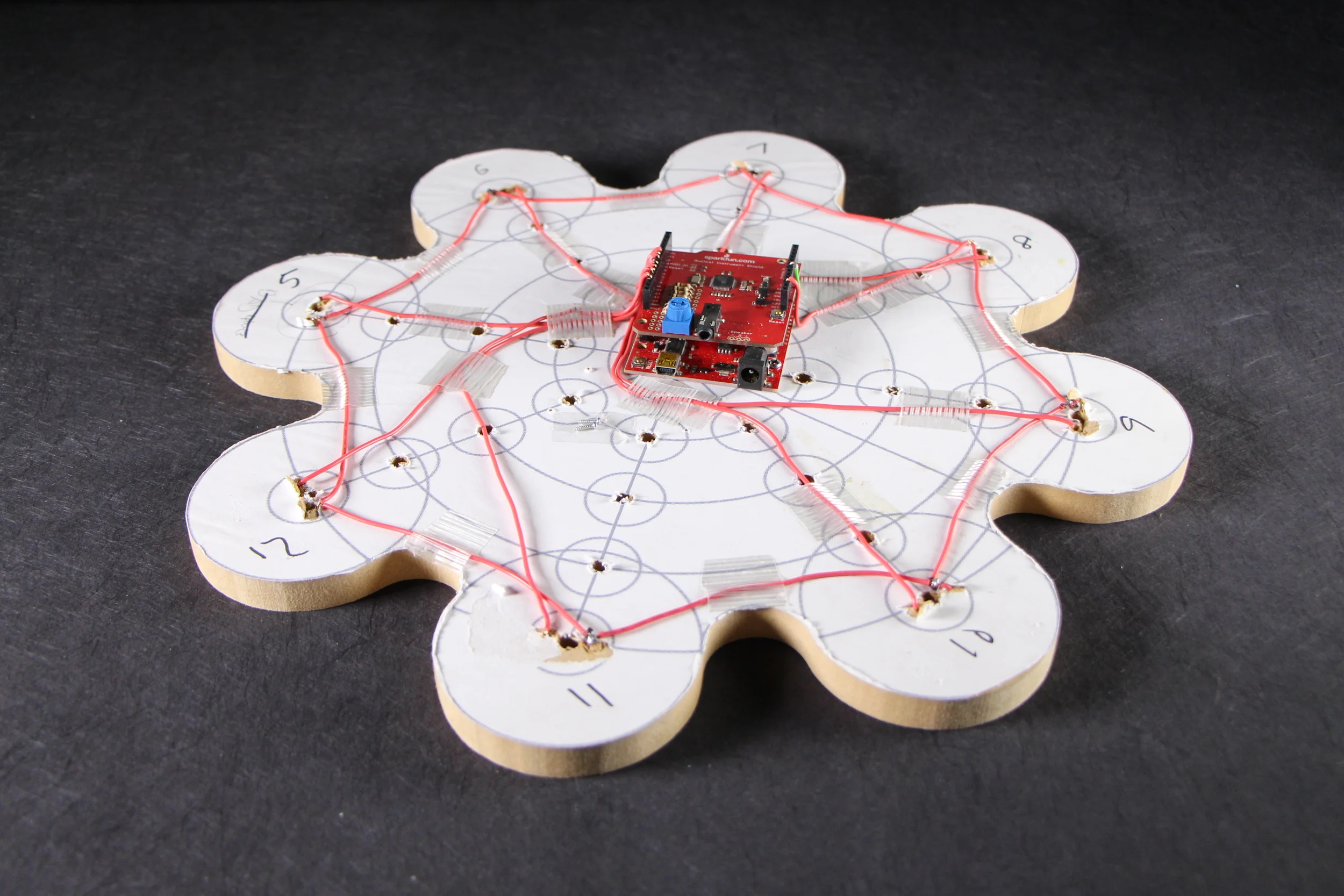

A working prototype was made with an Arduino microcontroller with magnetic reed sensors detecting whether there was a magnet ball present to trigger the sensor.  This triggered a piezo-electric buzzer to make a beep in sequence to whether a ball was detected or not, thus creating a physical beat-making machine.




iteration

A second prototype was made using an MIDI shield extension board allowing for a greater possibility of sound with over 100 different instrument sounds.




Physical model

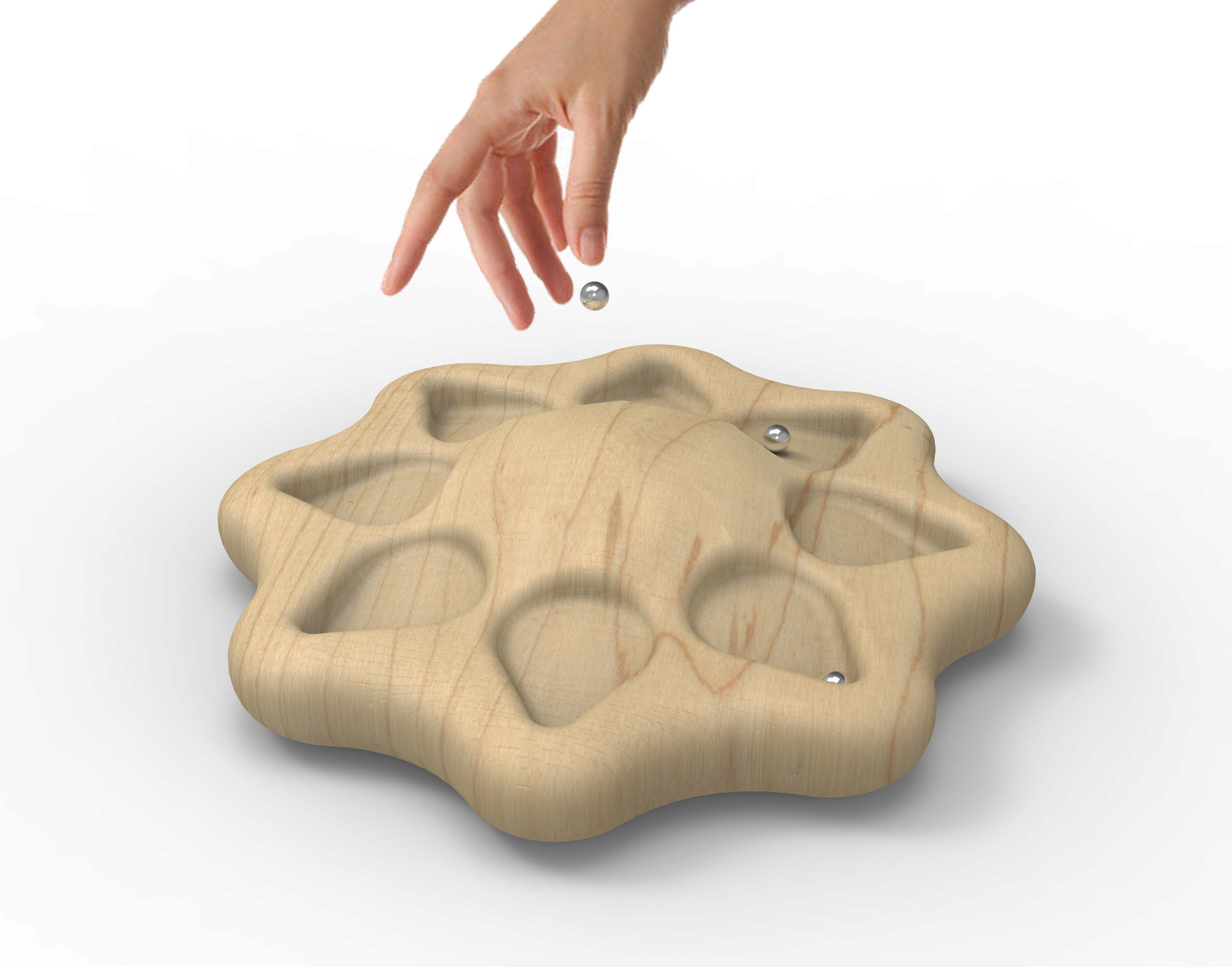

In addition to a "works-like" prototype I CNCed a "looks-like" model out of pink foam to present a sense of scale and proportion of the final product.
